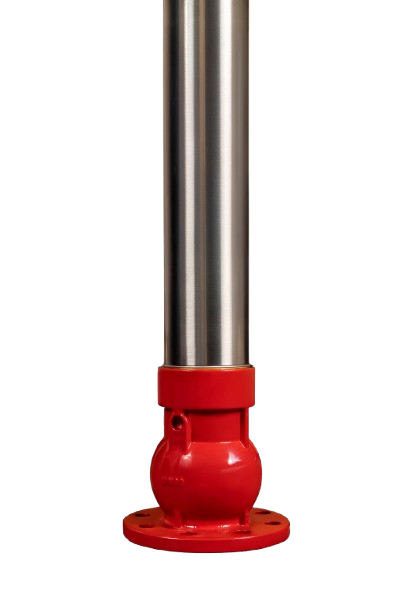

Overground Hydrant (steel, galvanized steel)

series OHS, OHSG

Application

Overground hydrant for fire protection and drinking water applications

Design features

  • Corrosion resistant internal and external parts
  • Complete drainage after full cut-off of the flow
  • Complete drainage system
  • Stainless steel stem with rolled thread
  • O-ring stem sealing, packing cork protected against medium
  • Forged packing cork protected against unscrewing
  • Low closing torque
  • Clockwise closing
  • 100% watertight

Technical characteristcs

  • Flange end connections according to EN1092-2: PN10/PN16
  • Design in accordance to EN1074
  • Maximum working pressure: PN16 / 16 Bar
  • Working temperature: 0°C - +50°C
  • Fully vulcanized wedge in EPDM
  • Powder epoxy coating 80 μm thickness (250 μm thickness on request) (epoxy + polyester)
  • Beginning of opening <4 turns, full opening after 9 turns
  • Steel column - series OHS, galvanized steel column - series OHSG
  • Outlets according to DIN 14317 (DN80, DN100) and DIN 14319 (DN100)

Downloads

  • Datasheet

Dimensions

DNRDLHcolumnKgStockCodeAmount
DN 80 RD 1250 L 1900 H 2070 column steel Kg 289 Stock Pre-order Code OHS0801250 Amount
DN 80 RD 1500 L 2150 H 2320 column steel Kg 291 Stock Pre-order Code OHS0801500 Amount
DN 80 RD 1800 L 2450 H 2620 column steel Kg 302 Stock Pre-order Code OHS0801800 Amount
DN 100 RD 1250 L 1900 H 2070 column steel Kg 304 Stock Pre-order Code OHS1001250 Amount
DN 100 RD 1500 L 2150 H 2320 column steel Kg 306 Stock Pre-order Code OHS1001500 Amount
DN 100 RD 1800 L 2450 H 2620 column steel Kg 308 Stock Pre-order Code OHS1001800 Amount
DN 80 RD 1250 L 1900 H 2070 column galvanized steel Kg 289 Stock Pre-order Code OHSG0801250 Amount
DN 80 RD 1500 L 2150 H 2320 column galvanized steel Kg 291 Stock Pre-order Code OHSG0801500 Amount
DN 80 RD 1800 L 2450 H 2620 column galvanized steel Kg 302 Stock Pre-order Code OHSG0801800 Amount
DN 100 RD 1250 L 1900 H 2070 column galvanized steel Kg 304 Stock Pre-order Code OHSG1001250 Amount
DN 100 RD 1500 L 2150 H 2320 column galvanized steel Kg 306 Stock Pre-order Code OHSG1001500 Amount
DN 100 RD 1800 L 2450 H 2620 column galvanized steel Kg 308 Stock Pre-order Code OHSG1001800 Amount
