MAXIGRIP Universal Coupling

series MGRIP

Application

Restrained universal coupling provides reliable connection to various types of pipe where tension resistance is required

Design features

  • Tensile resistant
  • Large tolerance
  • Suitable for ductile iron, steel, PE, PVC, AC pipes
  • Independent clamping on both sides
  • Angular deflection up to 4°
  • Corrosion resistant construction
  • Stainless steel insert is recommended for use with PE or PVC pipes

Technical Characteristics

  • Mechanical locking by metal inserts to avoid pipe axial movement
  • Maximum working pressure: PN16 / 16 bar
  • Working temperature: -10°C - +70°C
  • Body, end ring EN GJS450-12
  • Gasket EPDM as a standard, NBR optionally
  • Bolts, nuts and washers - carbon steel 8.8 hot dip galvanized
  • Galvanised carbon steel tension locks acc. to EN10025
  • Epoxy powder coating acc. to DIN30677 - minimum 250 μm thickness
  • Color RAL5015
  • Tested acc. to EN14525
  • WRAS approved product

Downloads

  • Hygienic Certificate PZH

  • Declaration of Conformity

  • Datasheet

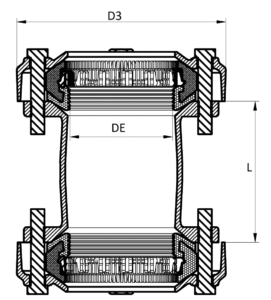

Dimensions

DNDE minDE maxLDMaximum pressureWeightStockCodeAmount
DN 50 DE min 46 DE max 70 L 240 D 187 Maximum pressure PN16 Weight 7.2 Stock Stocked Code MGRIP050 Amount
DN 65 DE min 70 DE max 95 L 240 D 212 Maximum pressure PN16 Weight 8.6 Stock Stocked Code MGRIP065 Amount
DN 80 DE min 88 DE max 123 L 250 D 240 Maximum pressure PN16 Weight 10 Stock Stocked Code MGRIP080 Amount
DN 100 DE min 108 DE max 143 L 250 D 260 Maximum pressure PN16 Weight 13 Stock Stocked Code MGRIP100 Amount
DN 125 DE min 133 DE max 168 L 260 D 285 Maximum pressure PN16 Weight 16 Stock Stocked Code MGRIP125 Amount
DN 150 DE min 159 DE max 194 L 260 D 311 Maximum pressure PN16 Weight 17 Stock Stocked Code MGRIP150 Amount
DN 200 DE min 200 DE max 235 L 295 D 370 Maximum pressure PN16 Weight 22 Stock Stocked Code MGRIP200 Amount
DN 250 DE min 250 DE max 285 L 305 D 420 Maximum pressure PN16 Weight 33 Stock Stocked Code MGRIP250 Amount
DN 300 DE min 315 DE max 350 L 315 D 485 Maximum pressure PN16 Weight 41 Stock Stocked Code MGRIP300 Amount
