Water
Sewage

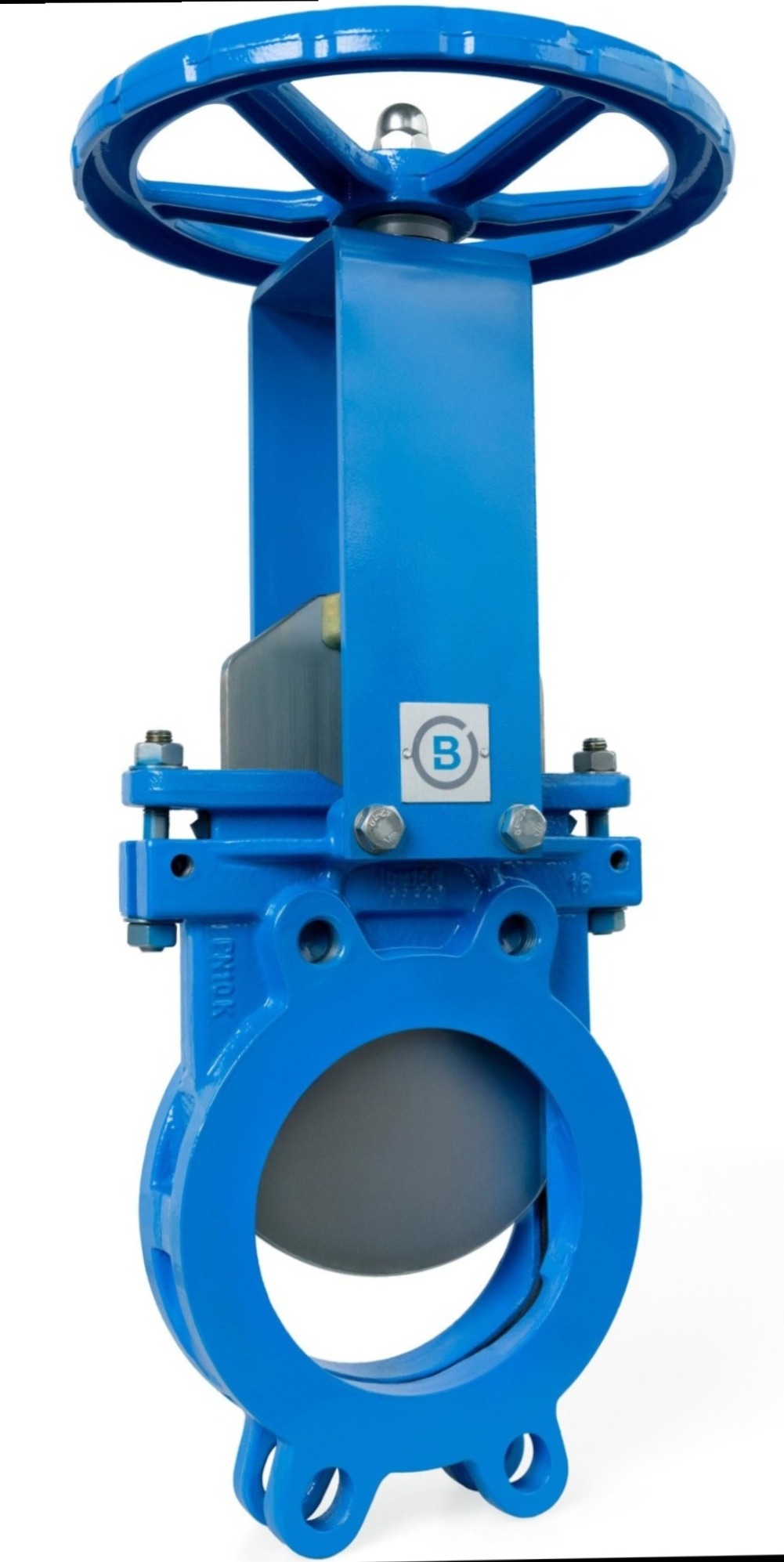

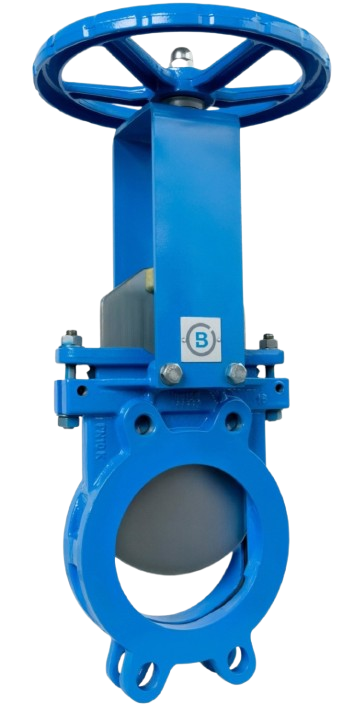

Knife Gate Valve (non rising stem)

series PS

Application

Resilient seat knife gate valve gate valve for drinking water and neutral liquids up to +70°C

Design features

  • Stainless steel stem
  • 100% watertight
  • Full bore
  • Clockwise closing
  • Guided wedge to ensure correct sealing
  • Double directional tightness
  • Non-rising stem

Technical characteristcs

  • Design in accordance to EN1074
  • Flange end connections according to EN1092-2: PN10&PN16
  • Maximum working pressure: DN50-DN250 - PN10/10 Bar, DN300-DN400 - PN6/6 Bar, DN500-DN600-PN4/4 Bar
  • Working temperature: 0°C - +70°C
  • EPDM seat
  • Stainless steel bolts
  • Color RAL5015
  • Handwheel operated (DN50-DN400), from DN500 - with gearbox
  • Powder epoxy coating 250 μm thickness
  • Available up to DN1600

Downloads

  • Datasheet

  • Hygienic certificate PZH

Dimensions

DNLHH1Dn-Ødn-ThPNFlange drillingKGStockCodeAmount
DN 50 L 48 H 290 H1 339 D 165 n-Ød 4-Ø18 n-Th 4-M16 PN 10 Flange drilling 10/16 KG 7 Stock Stocked Code PS050 Amount
DN 65 L 48 H 320 H1 379 D 185 n-Ød 4-Ø18 n-Th 4-M16 PN 10 Flange drilling 10/16 KG 8 Stock Stocked Code PS065 Amount
DN 80 L 51 H 350 H1 416 D 200 n-Ød 8-Ø18 n-Th 8-M16 PN 10 Flange drilling 10/16 KG 10 Stock Stocked Code PS080 Amount
DN 100 L 51 H 385 H1 463 D 220 n-Ød 8-Ø18 n-Th 8-M16 PN 10 Flange drilling 10/16 KG 13 Stock Stocked Code PS100 Amount
DN 125 L 57 H 430 H1 522 D 250 n-Ød 8-Ø18 n-Th 8-M16 PN 10 Flange drilling 10/16 KG 18 Stock Stocked Code PS125 Amount
DN 150 L 57 H 485 H1 591 D 285 n-Ød 8-Ø23 n-Th 8-M20 PN 10 Flange drilling 10/16 KG 23 Stock Stocked Code PS150 Amount
DN 200 L 60 H 565 H1 698 D 340 n-Ød 8-Ø23 n-Th 8-M20 PN 10 Flange drilling 10 KG 30 Stock Stocked Code PS200 Amount
DN 250 L 70 H 680 H1 839 D 395 n-Ød 12-Ø23 n-Th 12-M20 PN 10 Flange drilling 10 KG 51 Stock Stocked Code PS250 Amount
DN 300 L 76 H 755 H1 940 D 445 n-Ød 12-Ø23 n-Th 12-M20 PN 6 Flange drilling 10 KG 63 Stock Stocked Code PS300 Amount
DN 350 L 76 H 922 H1 1137 D 505 n-Ød 16-Ø23 n-Th 16-M20 PN 6 Flange drilling 10 KG 87 Stock Pre-order Code PS350 Amount
DN 400 L 89 H 970 H1 1210 D 565 n-Ød 16-Ø28 n-Th 16-M24 PN 6 Flange drilling 10 KG 117 Stock Stocked Code PS400 Amount
DN 500 L 127 H 1330 H1 1621 D 670 n-Ød 20-Ø28 n-Th 20-M24 PN 4 Flange drilling 10 KG 230 Stock Stocked Code PS500 Amount
DN 600 L 154 H 1460 H1 1801 D 780 n-Ød 20-Ø31 n-Th 20-M27 PN 4 Flange drilling 10 KG 320 Stock Pre-order Code PS600 Amount
